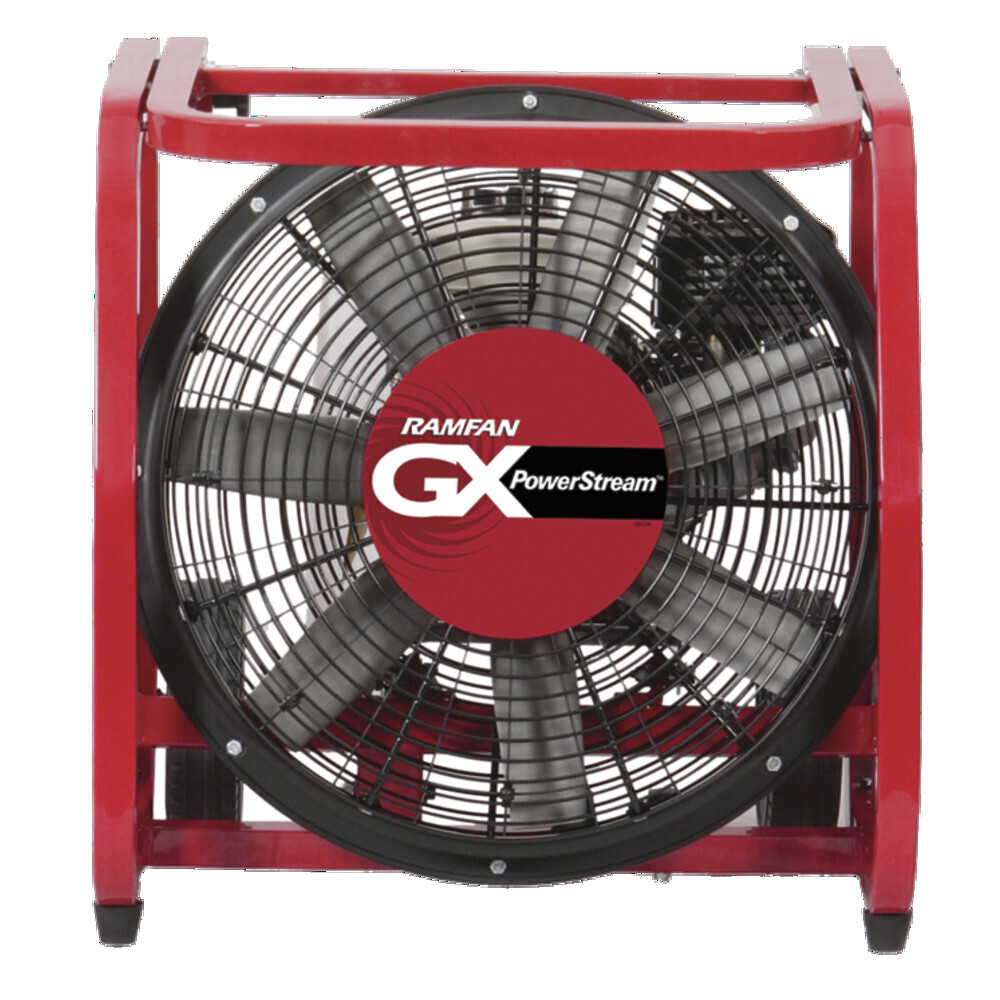

Ramfan high performance fan GX range

£0.00
GX Fan
In stock
Product Details
Brand: RAM

Ramfan high performance GX fans

  • GX500 :- 267040
  • GX400 :- 267035
  • GX200 :- 267025

The Ramfan high-performance fans have long since found their place. They have been used successfully for more than fifteen years. They have proven to be absolutely trustworthy and reliable. Convince yourself of the performance of the new generation of positive pressure ventilation with PowerStream technology!

PowerStream technology is the result of a state-of-the-art combination of fan rotor and housing. The air cone is bundled and can therefore be used for positive pressure ventilation over significantly greater distances.

The GX500 was designed for large objects. The powerful motor moves an enormous amount of air in combination with the large rotor. Entire warehouses, production halls or complex building structures can be ventilated with this fan.
The focus of this fan is also clearly an extremely attractive price for a
great performance.

  • wide, lockable folding handle
  • robust, semi-pneumatic tires
  • welded tubular steel frame in off-road design
  • secure stand on rubber feet
  • Honda branded engine for a long service life
  • Air performance certified by AMCA
  • equipped with PowerStream air bundling
  • ONE step tilt angle adjustment
GX500:- Dimension H x W x D: 760x740x680mm
Rotor Ø: 60 cm
Air performance according to AMCA (double door): 47,260 m³/h
Air performance according to AMCA (hall door): 64,090 m³/h
Air output based on the injector principle (double door): 89,794 m³/h
Air output according to the injector principle (hall door): 121,771 m³/h
Duration: 122 mins
Noise (3m): 96dB
Engine: Honda GX270
Engine power: 6.3/8.5 kW/hp

The GX400 was designed for larger objects. Thanks to the large rotor, double doors or smaller gates can also be easily covered with the air cone. With its relatively small dimensions, the GX400 is the ideal link between small and large objects.

  • wide, lockable folding handle
  • robust, semi-pneumatic tires
  • welded tubular steel frame in off-road design
  • secure stand on rubber feet
  • Honda branded engine for a long service life
  • Air performance certified by AMCA
  • equipped with PowerStream air bundling
  • ONE step tilt angle adjustment
Air performance according to AMCA: 28,555 m³/h
Air performance according to AMCA (double door): 38,250 m³/h
Air output based on the injector principle: 54,254 m³/h
Air output based on the injector principle (double door): 72,675 m³/h
Noise (3m): 95dB

The GX200 is the smallest blower of the GX series. Thanks to its small measurements, the blower can be easily stored in nearly every vehicle.

Over the past years, the Ramfan high performance blowers have proven themselves to be extremely effective and reliable. Experience for yourself the power of the PowerStream technology!

The PowerStream technology is the result of a newly developed combination of blower-rotor and housing.


Measurement H x B x T: 550 x 500 x 520 mm
Air output according to AMCA: 21.794 m³/h
Air output according to injector principle: 41.408 m³/h
Operating time: 100 min
Noise (3 m): 86 dB
Motor: Honda GXH50
Engine performance: 1,6/2,1 kW/PS
