Thermal Image Camera: Fire Attack 120

Optional car/truck loading bracket 12/24V & USB / power board connection

The F120 is safely loaded in the charging bracket. At the same time, the spare battery and the camera can be charged.

Removal can be done safely, quickly and intuitively, this ensures constant operational readiness.

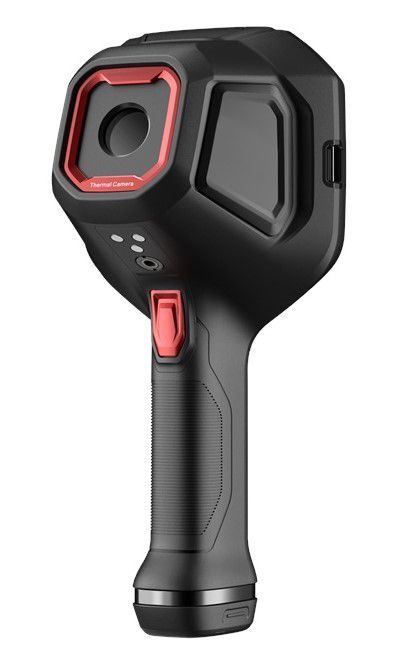

The Fire attack is a robust, compact and high-quality thermal imaging camera that was developed for tough firefighting operations. In darkness and smoke, the camera and many other situations help save lives, protect property, and keep firefighters safe.

The individual configuration of the F120 is protected by its own set three-digit password. As a user, you decide whether you want to use a one-button / two-button or three-button camera. You decide whether you want to use more than one mode, zoom, photo-video memory, hot/cold tracker which temp bar display and memory type are used.

It is a handheld thermal imaging camera from the field of attack AOR, tactical, tactical UVA that is to be held with one hand, the camera's three buttons are easy to use with one finger.

It is equipped with image support and many features. There is always the possibility to use photo and video recordings or the freeze function. In addition to the different image modes, which supports the user in his various activities.

It has a 2x and 4x zoom, together with the Black White (BW) mode, this can optimally support you in a person search. The Hot and Cold Tracker provides the user with important information at all times.

The display with 4.3", 60Hz., resolution of 384x288, the value of 35 mK (0.035C°), a display of 650°C or up to 1200°C and the OD system guarantee you a clear and detailed image display at all times.

The IP67, 2 mtr. Drop test, 260 °C with up to 7minutes working temperature range, reliably ensure the user can use the F120 even under the most extreme conditions.

With these possibilities, the 3 in 1 camera, configurability, the technical data and the price-performance ratio, the camera is second to none.

● Resoluton - Thermal resolution: 384 x 288 (110,592 pixels)

● NETD: <35 mK (@ 25°C, F#=1.0)

● Start - Start up time: 5 seconds - second (with IR image), 10 second (with OSD)

● Image support for object details - OD

● Temperature measurement range : -20°C to 1200°C / NFPA -20°C – 650°C

● Measurement presets: Center spot, Hot spot, Cold spot

● 60 Hz image frequency

● 4.3" LCD screen display

● Hot and Cold Tracker

● 6 Mode – NFPA Basic, White Hot, Black Hot, Fire Detection, Rescue, Hot Area,

●Photo/video memory 32GB or freeze function

● 2/4x zoom

The Fire attack F120 has been developed specifically for the fire brigade, and can be programed with its own three-digit password protection.

You can configure the F120 as an attack (AOR), tactical, or tactical UVA camera.

THE F120 IS THE THREE IN ONE CAMERA. YOU DECIDE HOW YOU WANT TO USE THE CAMERA. As an attack (AOR), tactic or tactic UVA camera.

-Switching from high to low gain ≤ 1 sec.

FIRE BRIGADE SPECIFIC MODES : you can configurate the F120 to be individually protected by its own three-digit password.

- Configurable as a one-button camera - only on and off attack camera

Two button camera – on/off – zoom or on/off – modes

Three Button Camera - On/Off - Zoom - Modes

Plus the use of the trigger as a photo/video – freeze – no function

Two temperature ranges in one camera -20°- >650° and >1200°

NFPA mode with a representation of -20° >650°

Basic / NFPA mode with standard display according to NFPA (battery/temp bar. Symbols)

OD image support always on

NFPA/BASIC mode always as Start Mode

ON/OFF button pressed 3 sec. standby / 6 sec. off. The status is shown to the user on the display.

-ON/OFF switch serves as a reset switch – Always returns to NFPA/Basic Mode
