Tirfor type winch and cable.

Various complete sets and separate items available.

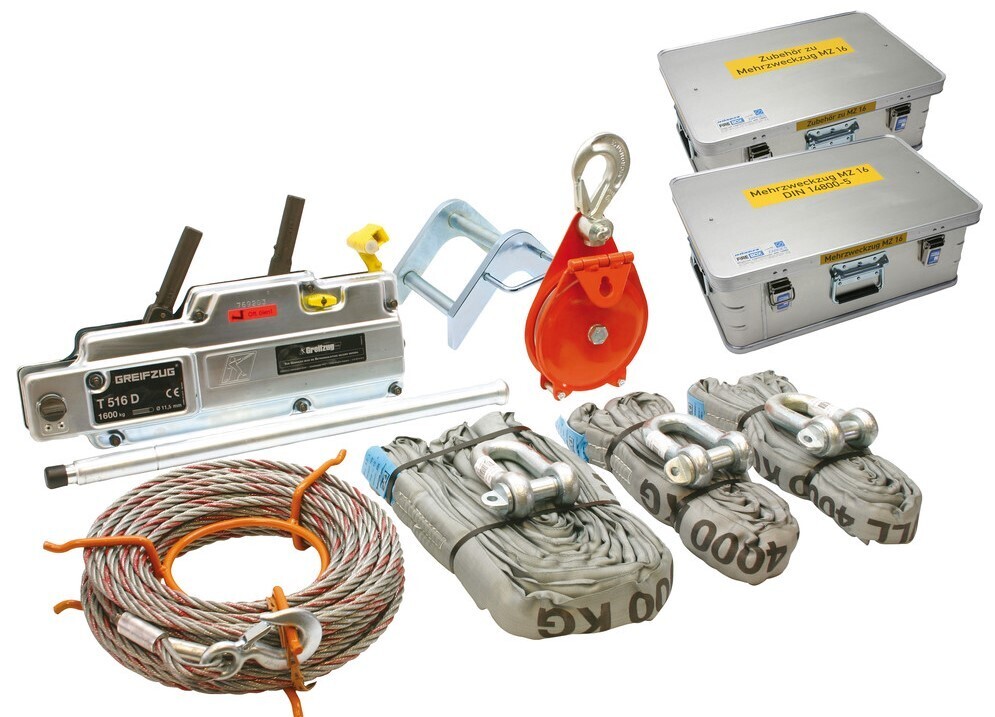

217412:- Newly designed set according to DIN 14800-5:2013-12. contacins:-

Box 1:
1 piece Dönges FireBox made by Zarges, according to DIN 14880-1-LM (600 x 400 x 220 mm), with partitioning and stickers
1 piece Wadra multipurpose hoist 816
1 piece of lever tube
2 pcs. spare pins

Box 2:
1 piece Dönges FireBox made by Zarges, according to DIN 14880-1-LM (600 x 400 x 220 mm)
1 pc. pulley, foldable, single-roller, for tensile force up to 50 kN
1 piece of edge trimmer 50 kN
2 round slings according to DIN EN 1492-2 made of polyester, max. load 40 kN, useful length 2 m
1 piece round sling according to DIN
EN 1492-2 made of polyester, max. load 40 kN, useful length 4 m
3 shackles A 4 DIN 82101 Load capacity 4 t

Supplied separately:
1 rope, Ø 11.5 mm, 30 m long, with load hook, on reel

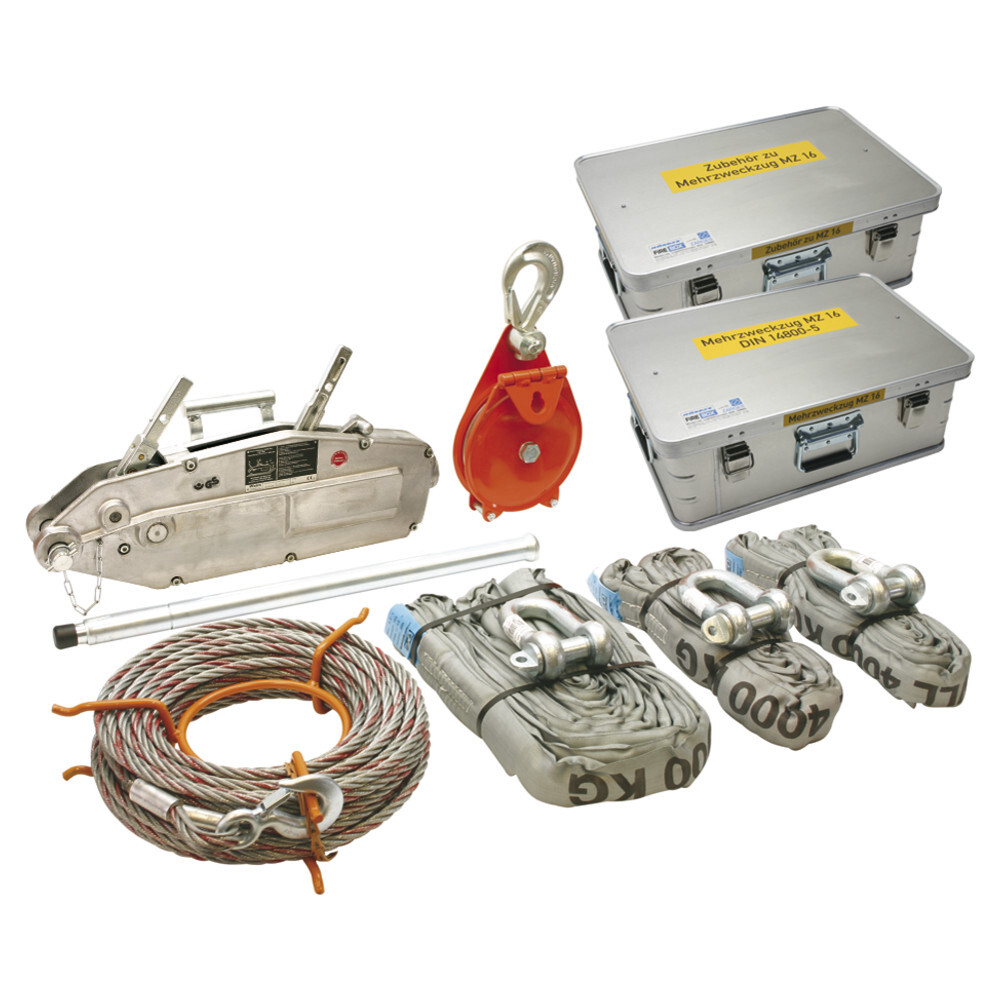

	217412:Complete WADRA winch kit, For normal use. Supplied in cases with lop straps.

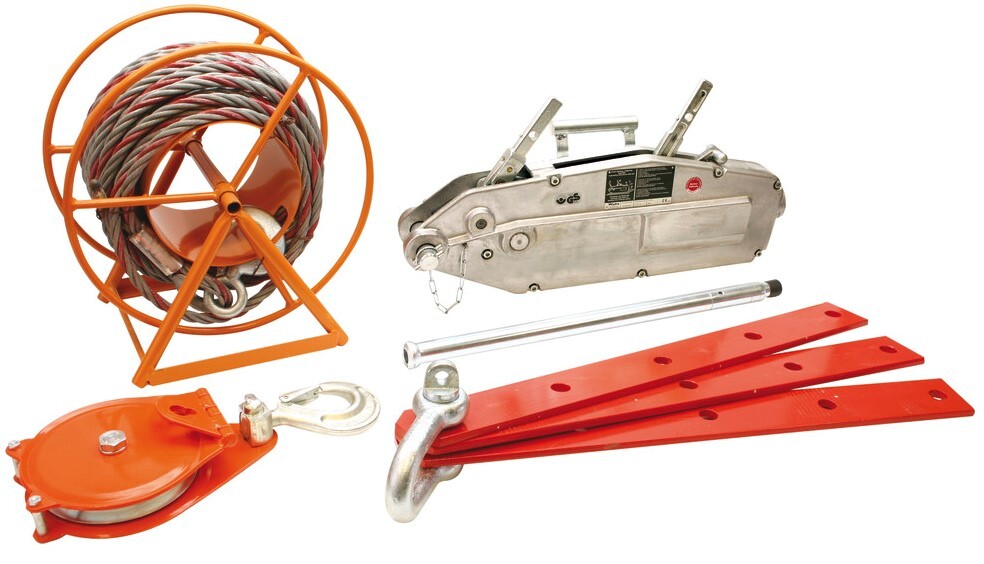

	217503:Complete WADRA winch kit, Fore Anchor positioning. Supplied in cases with Ground spikes.

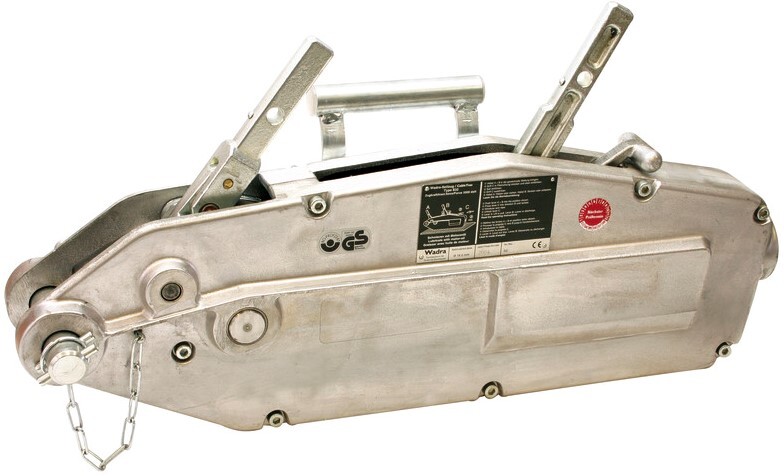

	217521: Wadra Winch.
	217564:- Wire cable on reel; 16mm x 30mtr.

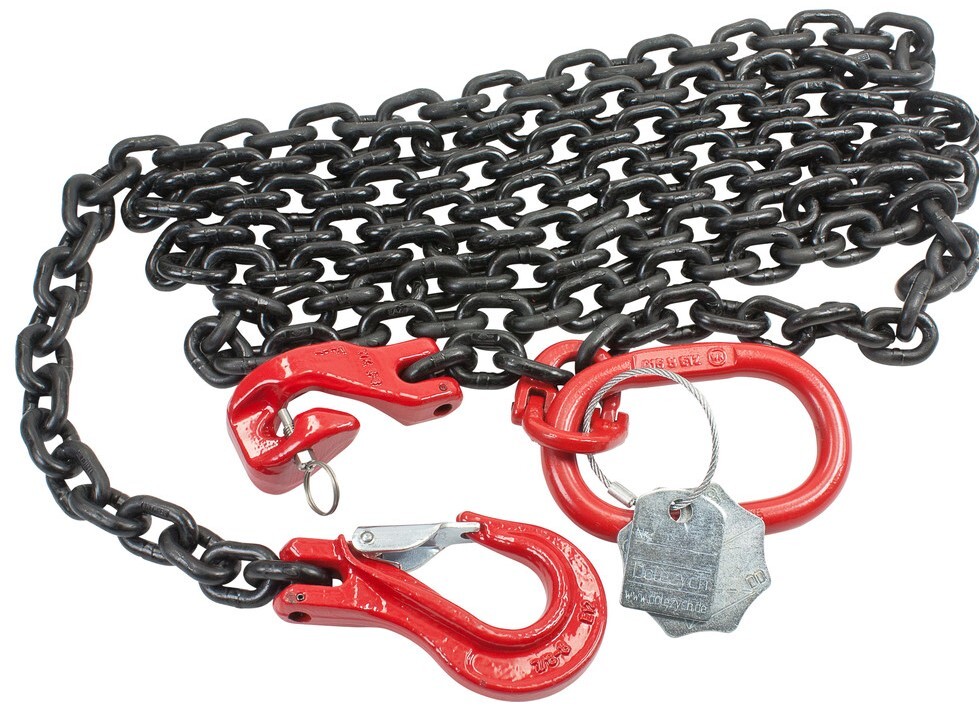

	lifting Chains 210461: 4mtr x 2 ton "Lift" 210463: 8mtr x 2 ton "Lift"
	Lifting "Straight" slings. Various Lengths and Loads Lengths:- 1-2-3-4-5-6-7-8-9-10mtrs Loads:- 1 to 20 Ton.

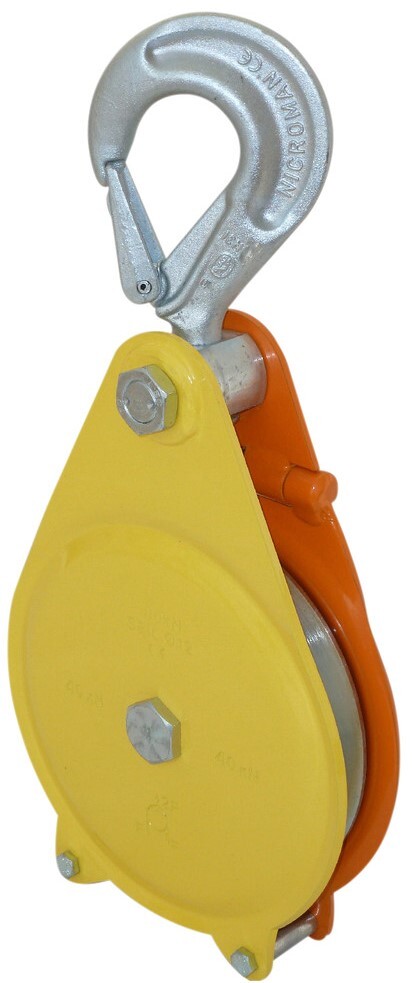

	Heavy Duty pulley. loads from : 50KN to 130KN 214228:- 130KN.

Plus equipment to assist in setting up a winch/pully system
